Shock absorber repair machine Instructions

1.Before using the device, please read the instruction manual carefully for proper operation.
2.During use, do not allow children to approach the device or unplug any connections. pay attention to the operation of the device and do not operate it without training.

3. During maintenance and aAer construction, the power must be turned of. If the power is turned on for maintenance or repair of the circuit, do not touch any conductive parts of the equipment, as it may cause electric shock.
4. please use a safe power supply (220 or 380v/50-60Hz) that meets the equipment requirements to ensure normal operation of the machine. If there is a malfunction, please immediately cut of the power and contact the manufacturer. Equipment introduction

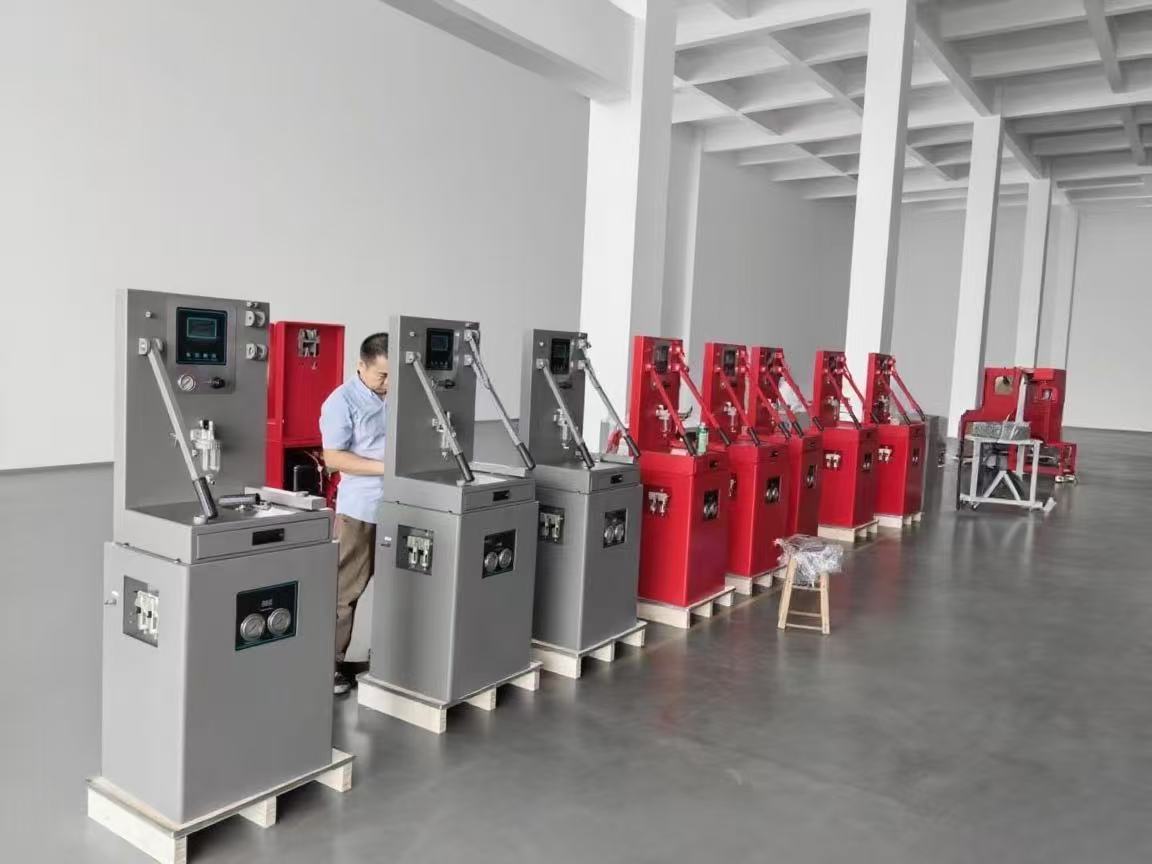

This is a combination tool that includes a high-purity nitrogen gas machine, a shock absorber damping testing machine,
and a set of shock absorber filling joints. with this equipment, you can have Efectively solves problems such as shock
absorption without rebound or damping, and can be restored to the new car state without the need to replace the shock
absorber. Maintain original factory quality. By comparing the data, it is possible to clearly understand the damping parameters of the shock absorber before and aAer repair. It is a popular and hot project for profit diversion in auto repair shops!

Structural diagram

Oil pressure relief rod Filling pressure gauge

Nitrogen generator

Damping detection pressure rod

Control panel
Pressure regulating valve

Oiling device

Pressure sensor

Filling connector Nitrogen pressure gauge

Parameter

Voltage：220V
Nitrogen purity：99%
Special connector：9
Type of connector： Sensor accuracy：
Number of sensors：1
Net weight：70kg
Package size：6945151678mm

1. Long press the Add new oil function button for five
   seconds to enter the system settings interface, where you can calibrate the electronic scale and switch between
   Chinese and English!
2. Before maintenance, the damping parameters need to be saved by pressing the “Save Pressure Function” button. To repair the damping parameters before maintenance, the
   record can be saved and the parameter display after
   maintenance can be entered.
3. Press the new oil filling function button to enter the Add new oil interface. Press the
   corresponding function button on the display to start and stop filling. On the new oil filling
   interface, press the new oil filling function button again to set the filling time.
4. Press the unit switching function key to switch damping units
5. Pressure sensor calibration requires
   entering the calibration password to enter the calibration program. If you need to
   calibrate the electronic scale, please contact the manufacturer’s technical personnel
6. Before measuring damping, place the
   shock absorber in the sensor slot and press the pressure zero function key to clear the weight of the shock absorber itself. Only
   then can the damping test of the shock
   absorber be carried out to ensure accurate data.

1.Connect the gas source to a 220V power supply, turn on the power switch, and the equipment will automatically produce
high-purity nitrogen gas.

2.Detect the initial damping of the shock absorber and record the data.

3.Place the pre repair shock absorber at the sensor mount position, press the
pressure zero button, and remove the weight of the shock absorber before
conducting the damping test. After the damping data on the monitor stabilizes, press the save pressure button to save the damping data before repair.

4.Drain the old oil, find a matching filling
joint and connect the filling tube quick
connector, sealand block it. Insert the
joint into the shock absorber and invert it, ensuring that the oil drain port is facing
downwards and the tooth joint is lifted
upwards to open the oil sealand insert the shock absorber. At this time, the shock
absorber oil is discharged. (Before draining the oil, please inject sufficient nitrogen gas into the shock absorber before draining the oil normally)

5. Inject oil into the equipment, open the injector valve, and inject an equal amount of new oil into the equipment through the syringe.
6. Empty the filling tube, remove the filling
   quick connect tube, empty the air in the filling tube, reinsert the quick connect tube, and
   close the filling valve.
7. Adjust the filling pressure to 4kg through the pressure regulating valve.
8. Press the Add new oil function key, select the corresponding start function key, insert the quick connector into the oil filling joint and start filling with new oil. After the new oil is filled, nitrogen will be filled, and the shock absorber pressure rod will rebound.
9. After filling with the corresponding amount of nitrogen, press the corresponding function button to stop filling, cover it with a cloth
   block,and pullout the filling connector.
10. Test the repaired damping again, and
    there will be a comparison of the data before and after on the display.

The end

1. The filling connector is a precision accessory, please store it properly. If it is deformed due to collision, it will affect its use.
2. Regularly calibrate the pressure sensor.

Certificate of conformity
Product name
shock absorber repair machine Product model
ZC-3515
Manufacture date
May 23th, 2025 Warranty Complete machine for one year Vulnerable parts for six months
Assembly team
2 Quality Inspector
05
The product has passed the inspection and is allowed to leave the factory

Warranty card
Product name
shock absorber repair machine Product model
ZC-3515
Colour
Red Sale date
User Name Contact information
User Notice:

1. After purchasing the product, users need to mail the product warranty card receipt and invoice copy to our company within one month for archiving and convenient contact for
   after-sales maintenance services.
2. From the date of purchase after use, this card comes with a one-year warranty.
3. When using the equipment, it is necessary to follow the instructions in detail. During the warranty period, any malfunctions caused by product quality will be repaired or
   replaced by our company’s free after-sales service.
4. Equipment failure caused by transportation damage, improper operation, or self disassembly will not be covered by warranty!
