Instructions for use of brake disc grinding machine

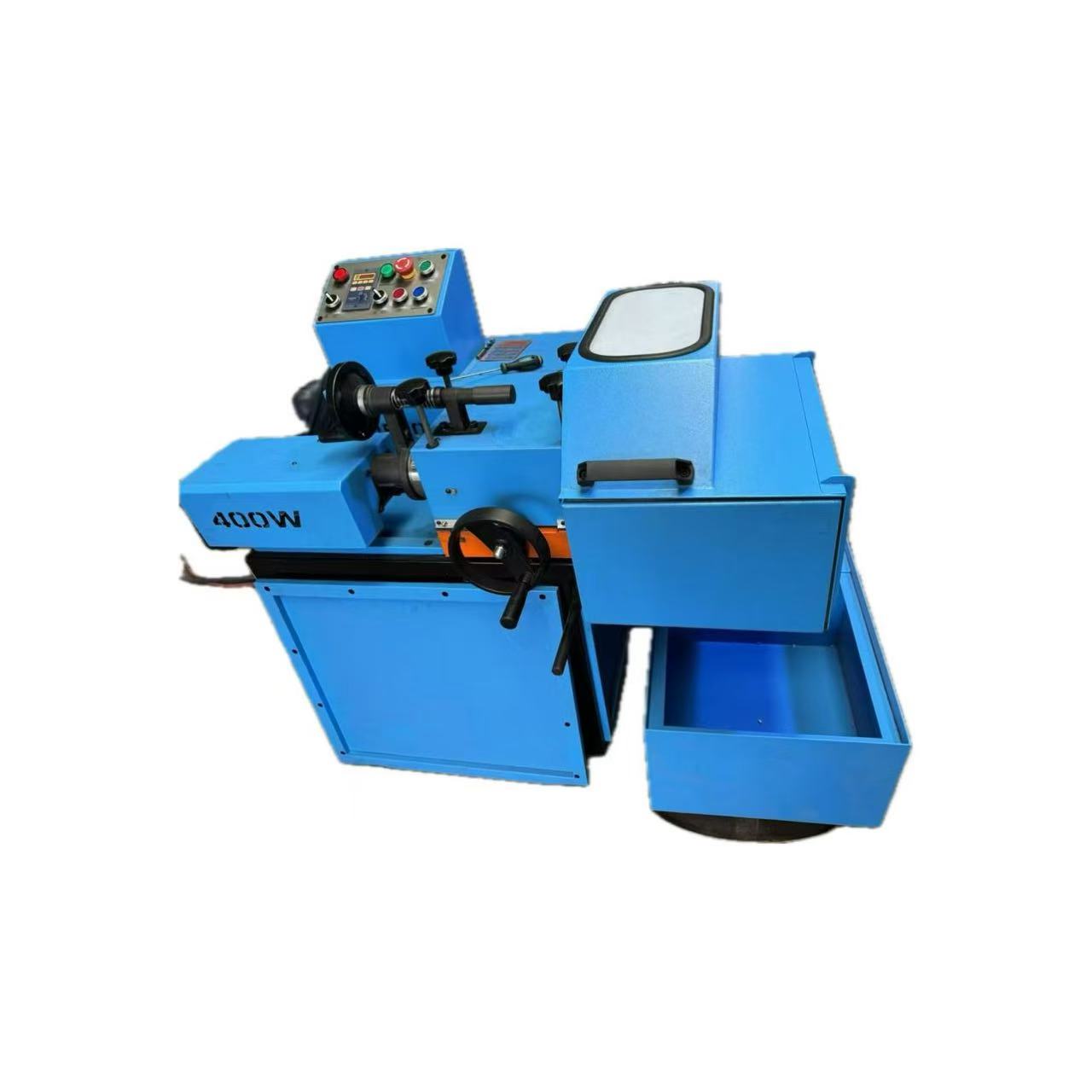

Randomly equipped with gold and steel stone grinding wheels (which can repair and grind 800-1000 brake discs with a diameter of about 350) and 6 sets of high-grade angular contact bearing spindles (two), the workpiece is driven by a 400W speed-adjustable motor, and supporting an industrial dust collector. Trim the plate with a diameter of 350 for 6 to 8 minutes.

The maximum grinding diameter is 405 mm, the maximum grinding disc thickness is 40 mm, and the maximum grinding disc working sur
The only consumable of this new equipment, the millstone, can repair about 1000 brake discs under normal operation. The following points must be paid attention to in the operation process: 1. Be careful not to knock against the millstone in the process of installing brake discs. 2 When operating and positioning the brake disc and disc surface, position the brake disc between the two grindstones, so as not to bump against the grindstones. 3 When locating the disk surface, be careful not to touch the grindstone at the raised flange of the brake disk. After all the above are noticed, when the brake disc and the grinding wheel are about to touch with the scale wheel, they should contact slowly. When they touch lightly, they can be repaired in the normal operation flow. 5 When the brake disc is repaired, it is necessary to develop good operating habits, put the brake disc in the middle of the two grindstones, loosen the four hand buttons, exit the brake disc and unload the repaired brake disc. This will greatly improve the service life of the millstone.
A set of two grinding stones costs 200 dollars for a set. The grinding stone can be used more than 1,000 times, and it will be changed after a year.
